| 产品 |
| 家具器械脚轮 |
| 水平调节脚轮 |

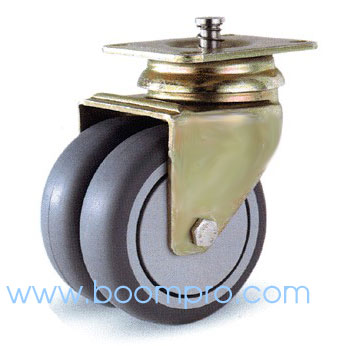

飞机餐车脚轮
 |

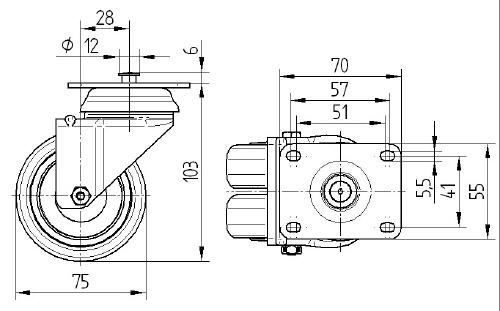

| Technical Data |
| 轮径 | Wheel diameter | 75 mm | 3 " | |
| 轮宽 | Tread width | 25 mm | 0,99 " | |
| 底板尺寸 | Plate dimensions | 70 x 55 mm | 2,76 x 2,17 " | |
| 安装孔距 | Bolt hole pattern on plate | 57 / 51 x 41,5 mm | 2,24 / 2,01 x 1,63 " | |
| 安装孔? | Plate hole | 5,5 mm | 0,22 " | |
| 偏心 | Offset | 28 mm | 1,1 " | |
| 转动半径 | Swivel Radius-? | 65.5 mm | 2.58 " | |
| 动荷载 | Dynamic load capacity | 100 Kg / daN | 220 LBS | |
| 静荷载 | Static load capacity | 250 Kg / daN | 550 LBS | |
| 净重 | Weight | 0,59 Kg / daN | 1,301 LBS | |
| 温度范围 | Temperature resistant area | - 20 / + 60 °C | - 4 / + 140 °F | |
| 安装高度 | Construction height | 103 mm | 4,06 " | |
