GDS 系列表示法 (Numbering system of GDS-series)
GDS 冲击吸收式 ,不可动力牵引 (Shock absorbing caster, Not towable)
GDSB 冲击吸收式, 双重锁紧装置, 不可动力牵引
Shock absorbing caster (Dual lock, Not towable)
GDSD 冲击吸收式双轮, 不可动力牵引
Shock absorbing caster (Twin wheel, Not towable)
GDST 冲击吸收式, 可动力牵引
Shock absorbing caster (Towable by power car)
GSST 冲击吸收式, 可动力牵引
Shock absorbing caster (Towable by power car)
Stopper A 无锁紧装置 (Without stopper)
B 有锁紧装置 (With stopper)
Type S 活动型 (Swivel type)
R 固定型 (Rigid type)
Mounting S 丝杆型 (Stem type mounting)
F 底板型 (Flange type mounting)
E 防静电型 (Anti-static type)

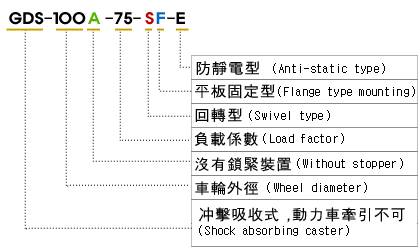

型号说明
(For example)
GDS 系列 允许负载 (Load capacity of GDS-series)
N 所需脚轮数量 (Number of casters)
W 设备或仪器的净重 (Weight of equipments or carts)
Wa 积载负载 (Additional charge)
Wc 脚轮的允许负载 (Allowable load of caster)
S 安全系数 (Safety factor)
设备适用 (For equipments), S : 2.0
牵引车适用 (For Carts), S : 1.3
计算公式
模型表示例
(For example)
牵引车适用 (Application : For cart)

W 50 Kg ( 设备净重 )
Wa 1,000 Kg ( 设备的积载负载 )
Wc 350 Kg/pce (GDS-130)
S 1.3



∴ N ( 所需脚轮数量 ) : GDS-130 4 个 (4 pcs for GDS-130 )
注意 (Remarks) 按照设备或仪器的负载以及外形、用处,可以增减脚轮的数量。
(The number of casters could be added more according to the weight or shape of equipments and, or carts.)
