吸收振动型脚轮
  说明&承载计算
  GDS100
  GDSD100(双轮)
  GDS125
  GDS130
  GDSD130(双轮)
  GDS150
  GDS200
  GSST200W
  GSST250







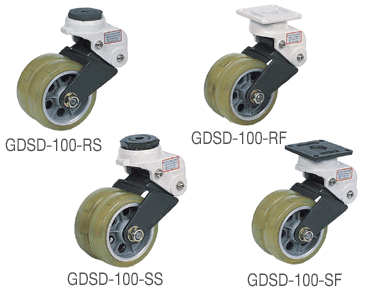

吸收振动型防震脚轮GDSD100





点击放大

四轮使用时承载说明
NO.
许可承载范围(Load Range)
吸振胶垫硬度load Factor
Kg
Lbs
Share A
1
240
520
65
2
300
660
75



设计说明(Specification)

每个允许承载Load capacity/pce
100 kg (220 lbs)
四个允许承载 (Recommended load/4 pcs)
240 ~ 300 kg (520 ~ 660 lbs)
净重(Net weight)
S-type
1.5 kg (3.3 lbs)
F-type
1.7 kg (3.7 lbs)
使用温度(Temperature range)
-10 ~ +90℃(+14 ~ +194℉)

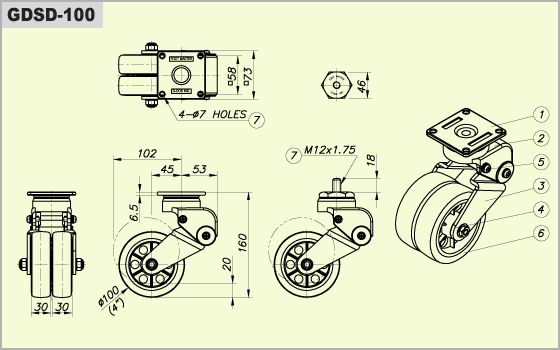

尺寸图材料说明

①底板(Top plate)
Forged steel
②支架(Frame)
Aluminum diecasted
③ 摆动臂(Leg)
Aluminum diecasted
④ 轴承(Bearing)
Ball bearing #608zz
⑤ 吸振垫(Spring)
特殊弹力胶(Special rubber)
⑥ 轮子(Wheel)
铝芯包聚氨脂(Polyurethane/Anti-static polyurethane with aluminum core )
⑦ 刹车踏板(Stopper) 尼龙-6(Nylon-6)
⑧ 固定螺栓(Mounting bolt)
S-type
M12x1.75P
F-type
4-M6x1.0P
⑨ 表面处理 (Surface treatment)
粉喷及镀锌(Powder coated & Zinc galvanized )
